Maestro Grand
Reference
Maestro Grand
Setting the Tone
Reference
Being the hardest working speaker in a surround system, the quality level of a center channel is of major importance to a system. Capable of being used in a Left – Center – Right configuration or additionally as surround channels, Maestro Grand Reference™ possesses an ability to produce the proscribed full range frequency range without dynamic limitation.As a center channel only, it was designed to offer a no-compromise match with our Liszt Reference™, Beethoven Concert Grand Reference™ and Beethoven Baby Grand Reference™.
At the heart of the design stand our patented 6 inch flat spidercone drivers, consisting of 2 distinct cones – our Composite Cone. The plane surface of the spidercone offers the advantage of precise, piston-like movement. Any diaphragm should move in and out as one unit, not as a quivering mass of uncorrelated vibrations. It should move as a perfectly-solid piston. The flat cone is extremely stiff, with bracings of a height of 18 mm (bass) and 14 mm (mid), yet light, respectively, further reinforced by glass fibers in our new X4P mixture.
This 1.1 inch handcoated silkdome tweeter is capable of revealing even the finest nuances in a most natural way, while imparting no stridency at all of its own, and consummately extend well down into the midrange spectrum.

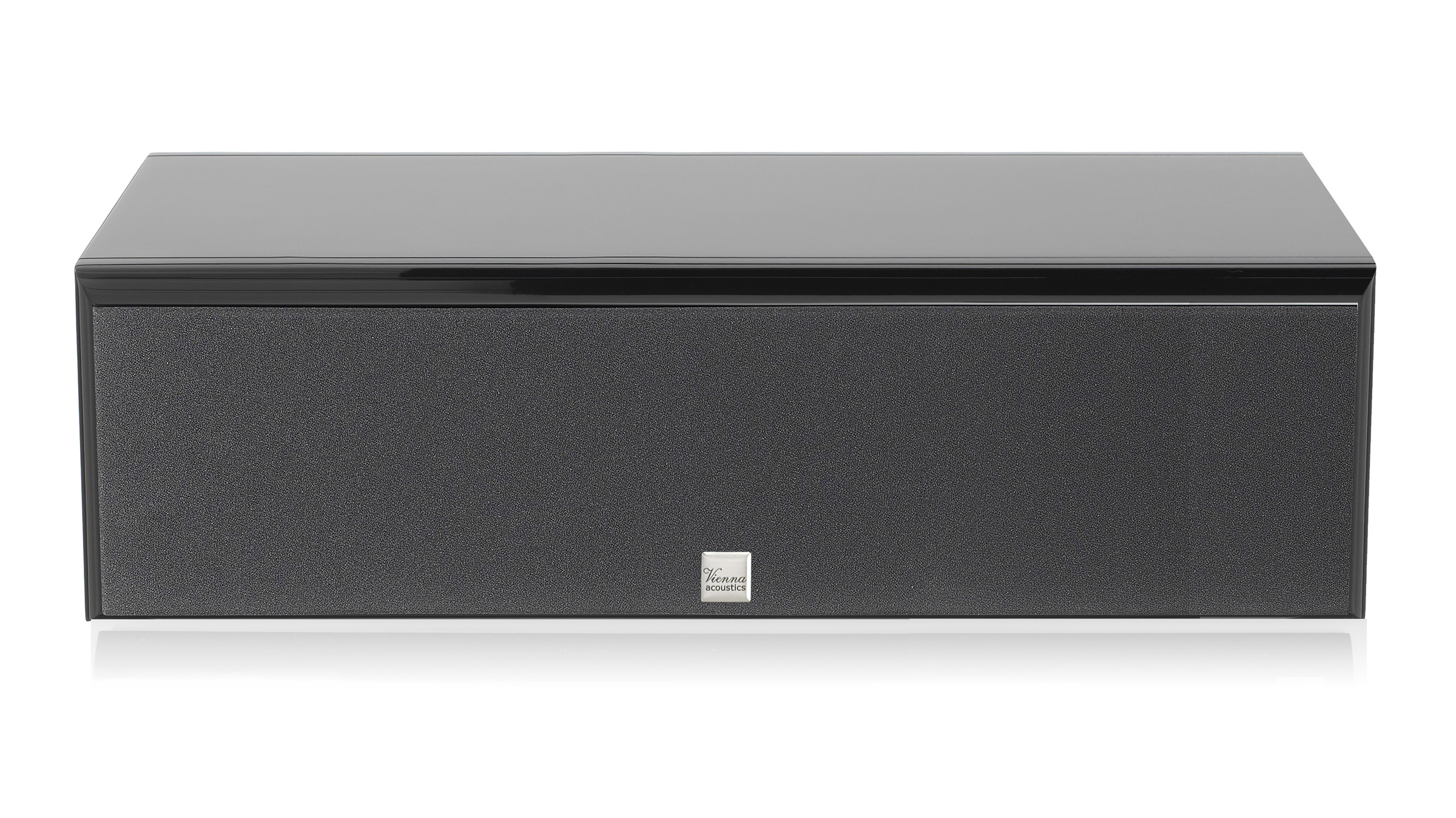

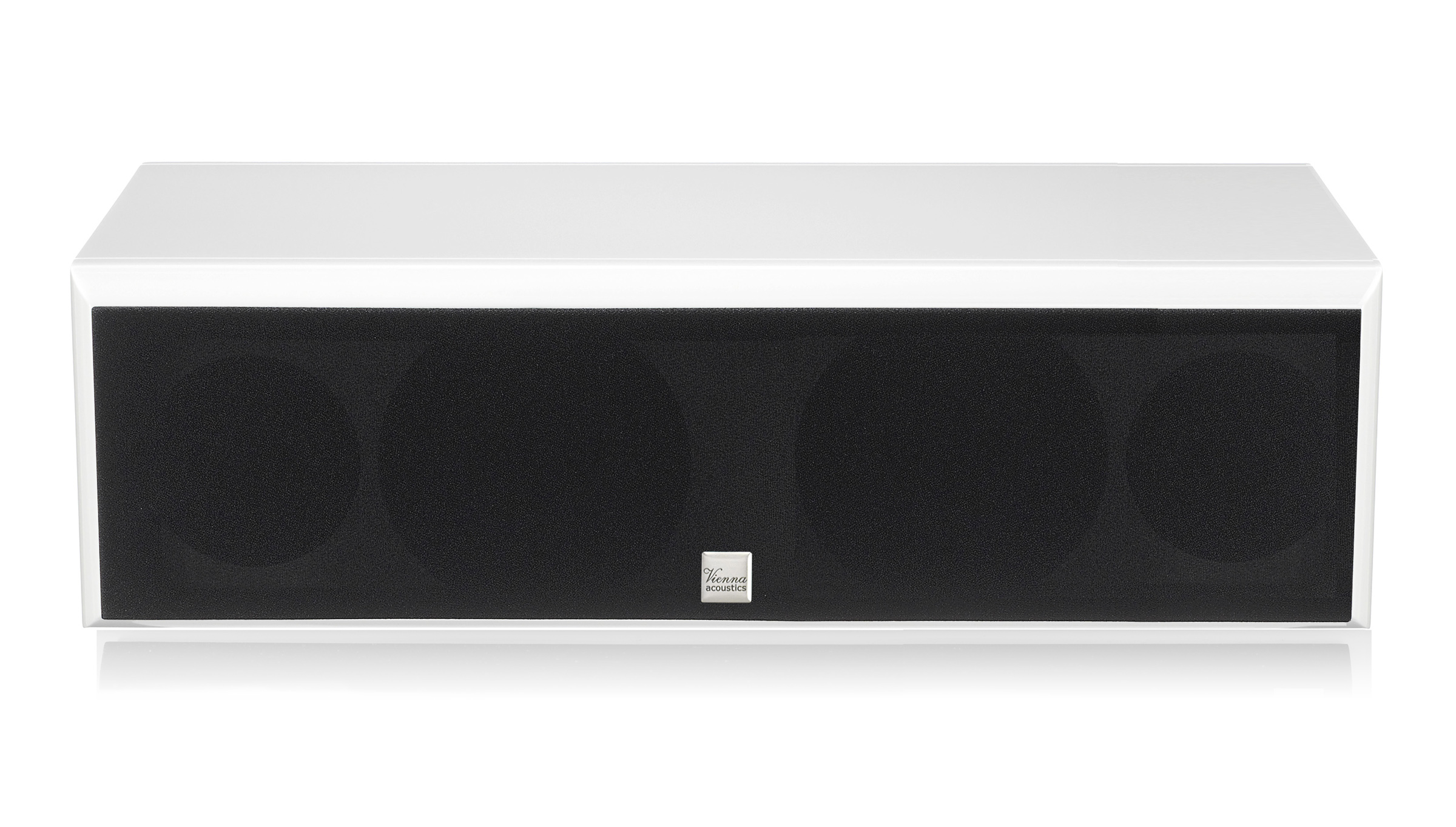

Maestro Grand Reference™ is available in true Piano Black and Piano White finish.
On Voice and Music
On Voice and Music
Finishes
Finish Dekor
Viennese Arts and Crafts
Technical
Technical Profile
Facts
- Impedance: 4 Ohms
- Frequency response: 28-23000Hz
- Sensitivity: 91dB
- Recommended Amplifier: 30 - 300 Watts
- Drive Units: 6" Woofer (2) Composite Cone: Flat X4P Spidercone with recessed fabric center-cone 1.1" Hand Coated Vienna Acoustics Silk Dome Bass System Bass Reflex, 2 x Front Ported
- Bass System: Bass Reflex, 2 x Front Ported
- Bass Function: Impulse Optimizing QB 3 (Quasi-Butterworth)
- Bass Section: Coils 0,7% tol., Midrange/Tweeter Section Air Coils, Special Powder Core for
- Crossover Components: MKP Capacitors 1% Tolerance Coils 0,7% tol., Exclusively Air Coils
- Crossover Function: 2.5 Way, 6 dB and 12 dB Bessel filters
- Metal Film Resistors: 1% Inductance Free
- Weight: 15 kg
- Dimensions (W x H x D) inches: 24 x 7 x 11 inch
- Dimensions (W x H x D) mm: 61 x 17.5 x 28.5 cm
- Finishes: Piano Black, Piano White
